Machining Equipment

High Speed Precision Machining

Horizontal Machining Centers: High speed precision machining with accuracy and efficiency

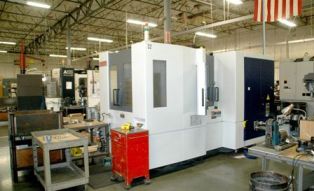

MORI SEIKI NH4000 DCG Horizontal Machining Center: Full 4 axis capability with 24" x 16" x 16" work cube, 25hp, 2000 rpm spindle.

MORI SEIKI  NH4000 DCG - Precision Machining

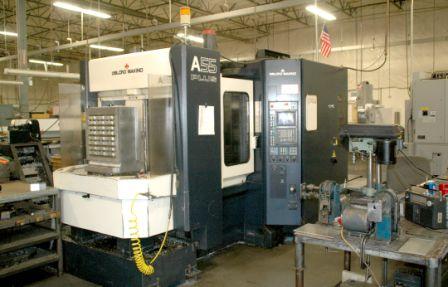

LEBLOND MAKINO A55 PLUS Horizontal Machining Center: Full 4 axis capability with 22” x 22” x 22” work cube, 30hp, 12,000 rpm spindle.

LEBLOND MAKINO A55 PLUS - Precision Machining

Vertical Machining Centers: High speed precision machining with incredible accuracy

MORI DMG Vertical Machining Centers (x2). Full 5 axis machining with a 53" x 23" x 41" work cube capacity, 30hp, 12,000 rpm spindle speed, with the most advanced control system on the market.

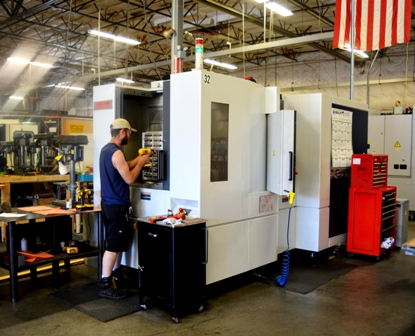

MORI SEIKI NV500B/40 Vertical Machining Center: Full 4 axis capability with a 40.0” x 20.1” x 20.1” work cube, 30hp, 12,000 rpm spindle. MORI SEIKI  NV500B/40 - Precision Machining

MORI SEIKI NV 5000 Vertical Machining Center: Full 4 axis capability with a 31.5” x 20.1” x 20.1” work cube, 30hp, 12,000 rpm spindle.

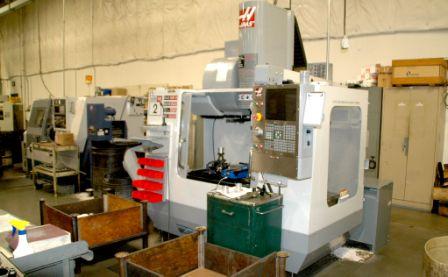

HAAS (2007) VF2SS 24 Tools. Full 4 axis capabilities, with 36” x 14” work cube, 30hp, 12,000 rpm spindle.

HAAS (2007) VF2SS 24 - Precision Machining

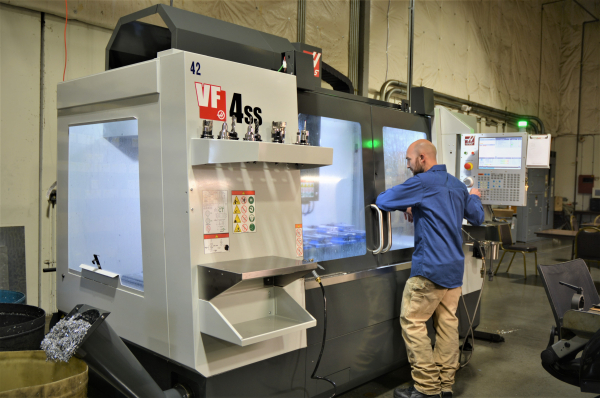

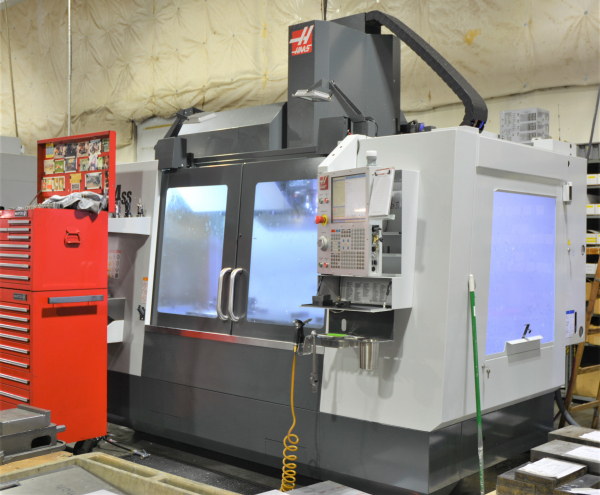

HAAS (2007) VF4SS 24 Tools. Full 5 axis capabilities, with 52” x 18” work cube, 30hp, 12,000 rpm spindle.

HAAS (2007) VF4SS 24 - Precision Machining

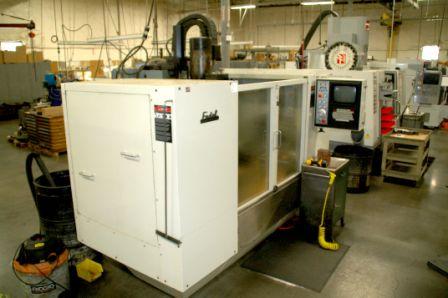

FADAL VMC-6030, 21 Tools Full 4 axis capability with 60” x 30” x 30” work cube, 15hp, 10,000 rpm spindle. FADAL VMC-6030 - Precision Machining

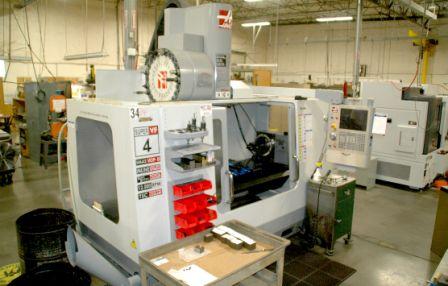

2 HAAS VF4SS, 21 Tools Full 4 axis capability with 40” x 20” x 28” work cube, 15hp, 10,000 rpm spindle. 3 - FADAL VMC-4020 - Precision Machining

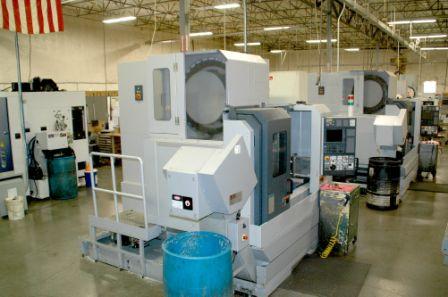

Turning Center

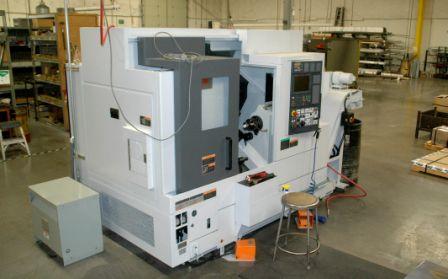

MORI SEIKI NL 1500 2 AXIS Turning Center, turning diameter 14”, Max length 20”, 8000 rpm Turret Max rotary tool spindle speed 6000 rpm Mori_NL_1500.jpg - Precision Machining

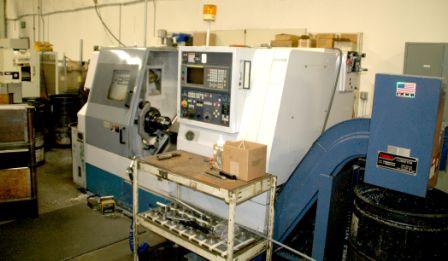

MORI SEIKI SL25-B Turning Center: Quick and Accurate with 2 ½” bar capacity, 10” chuck, 3500 rpm spindle, 20” z-axis. MORI SEIKI SL25-B - Precision Machining
DAINICHI F-20 Turning Center: 2” bar capacity, 8” chuck, and 4500 rpm spindle. DAINICHI F-20 Turning Center - Precision Machining

MANUAL EQUIPMENT

GRAZIANO Engine Lathe 17” x 60” • WACHEON Engine Lathe 21” x 80” • 2 - BRIDGEPORT Mills • 2 - Bead or Sand Blast Machines • ELECTRO ARC Tap Disintegrator • HANSVEDT Plunge EDM • HARDINGE DSM Lathe • HEM Automatic Band Saw 10” x 10” • 2 - SUNNEN Production Hones with Automatic Power Stroke • 3 - Vibratory Burring Machines GRAZIANO Engine Lathe - Precision Machining

INSPECTION EQUIPMENT

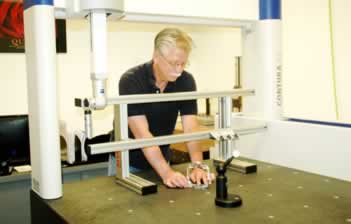

ZEISS Contrura G2 CMM  BROWN & SHARPE Coordinate Measuring Machine with SPC software • TESA-HITE Plus D • UNITED METROLOGY Optical Comparator 24” screen • ROCKWELL Hardness Tester • B&S Surface Tester • Micrometers to 24” • 3 - FEDERAL Air Probe Units .000025 Resolution



PROGRAMMING AND CAD SYSTEMS

3 Seats of Mastercam • Solid Works • AutoCAD • Adobe • Imagination • Capable Of Using Almost All File Formats • 2D 3D Solid Models • Capable of receiving all files via E-Mail

Featured Links

Machining Equipment
Photo Gallery

5 Axis Machining
Info / Photos

Secondary Operations
Info / Photos

To learn more about Portland Precision's machining centers, turning centers and manual equipment, contact us today.
